| Brand Name : | SMART AUTOMATION |
| Model Number : | brush and brushless |
| Certification : | ROHS CE ISO9001 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000PCS |
| Delivery Time : | 45DAYS |
Smart Automation Customized Brushed Dc Motors /
Brushless Dc Motors / Dc Gear Motors
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.
Options
| Diameter | 30mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 86mm 90mm 110mm 130mm |
| Rated voltage | 10v 12v 18v 24v 36v 48v up to 380vdc |
| Rated torque | Up to 10Nm (if with gearbox up to 120Nm) |
| Rated speed | 1rpm up to 15000rpm |
| Rated power | 10w up to 2000w |
| Protection class | Option IP00 40 50 54 56 66 67 |
| EMI | EMI suppression available |
| Thermal | Thermal protection available |
| Gearbox | Option with planetary or worm gearbox assembled |
| Brake | Option with electric brake assembled |
| Encoder | Option with Optical or Magnetic encoders assembled |
| Controller | Option with controller integrated for BLDC Motors |
Below Are Only Some of Our Typical Models.
Pls Contact Us for More Models or Customized Motors.

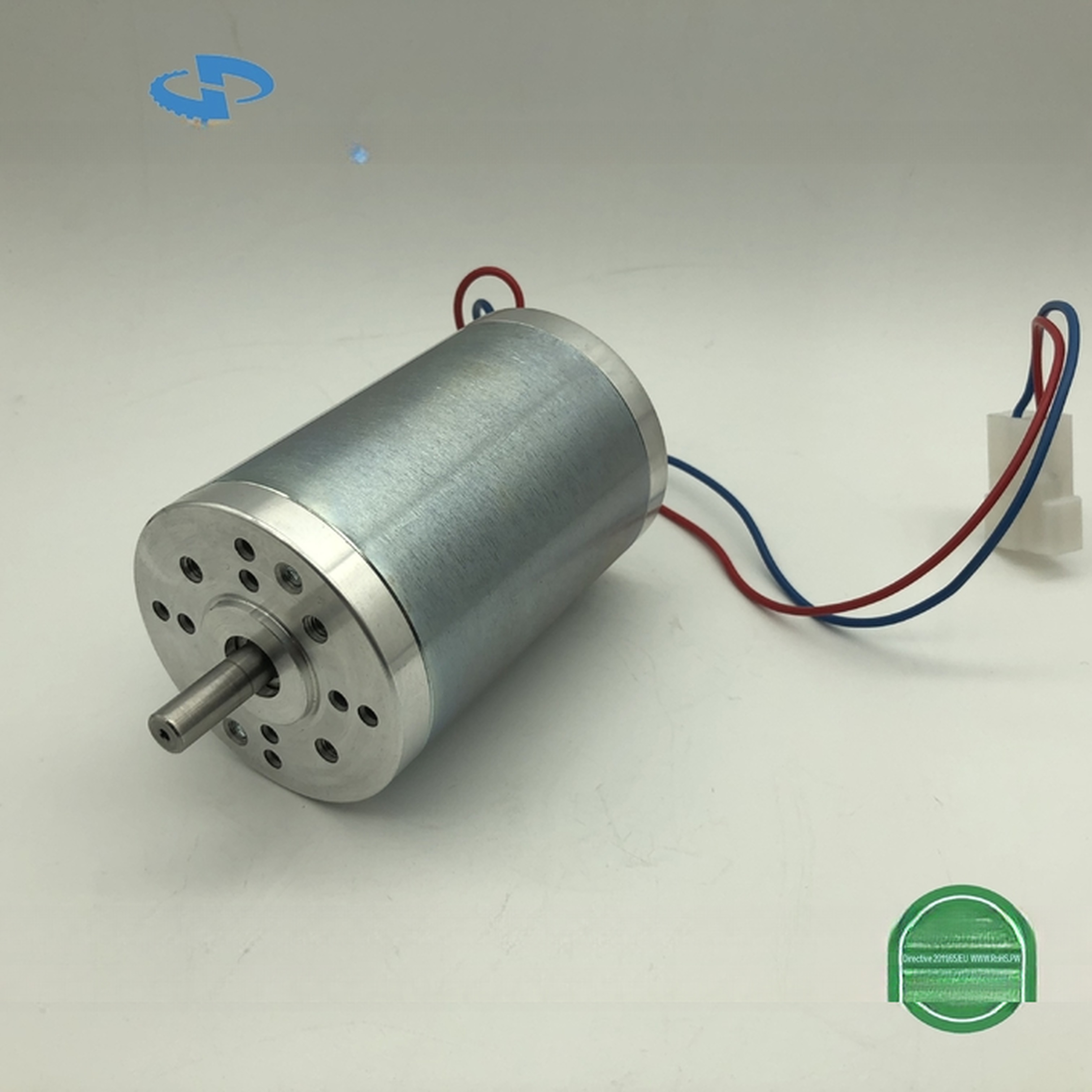

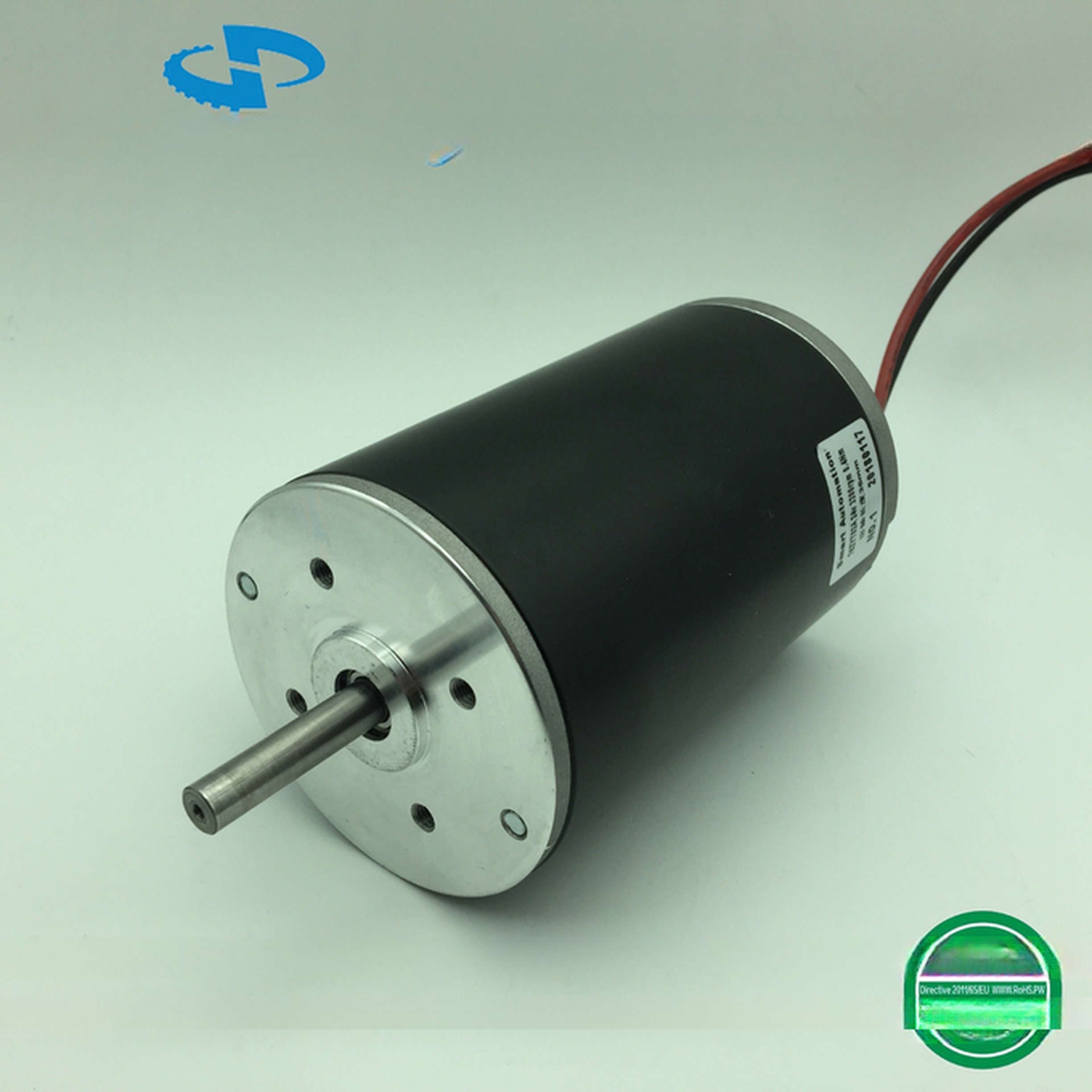

1. Permanent Magnet Brush Dc Motors / PMDC Motors
Size 42mm (Equivalent to Gr42)
Size 52mm (Equivalent to Gr53)
Size 63mm (Equivalent to Gr63)
Size 76mm
Size 80mm (Equivalent to Gr80)
Size 90mm

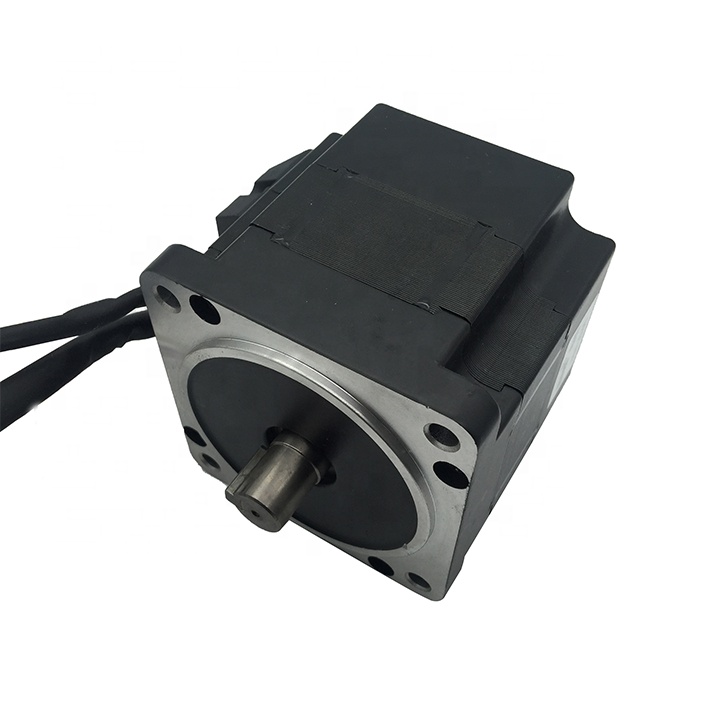

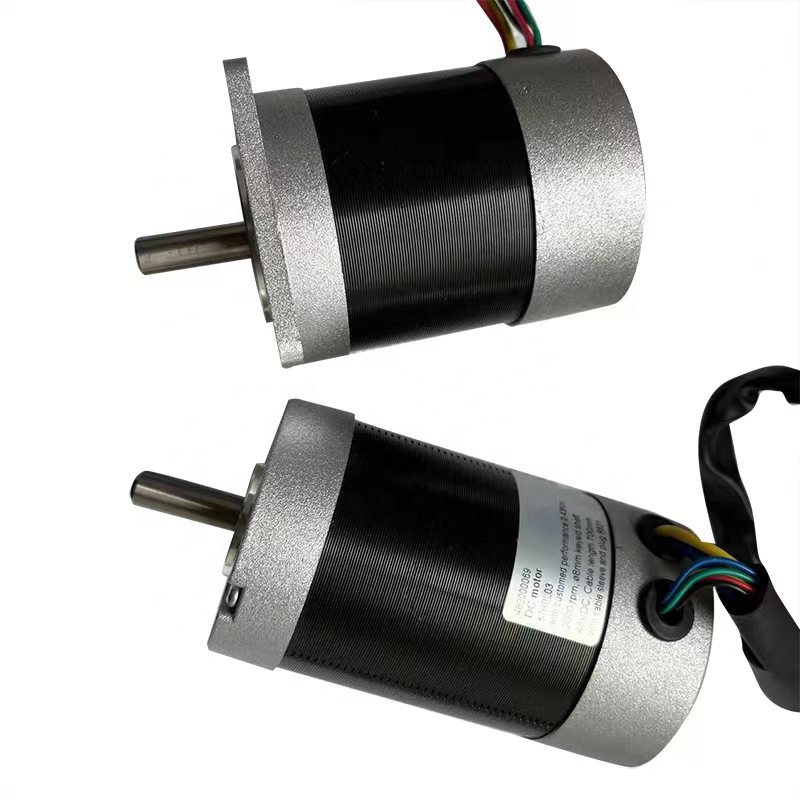

2. High Torque Brusless Dc Motors / BLDC Motors
Size 42mm Round Type
Size 42mm x 42mm Square
Size 57mm
Size 60mm
Size 80mm
Size 86mm x 86mm Square
Size 110mm

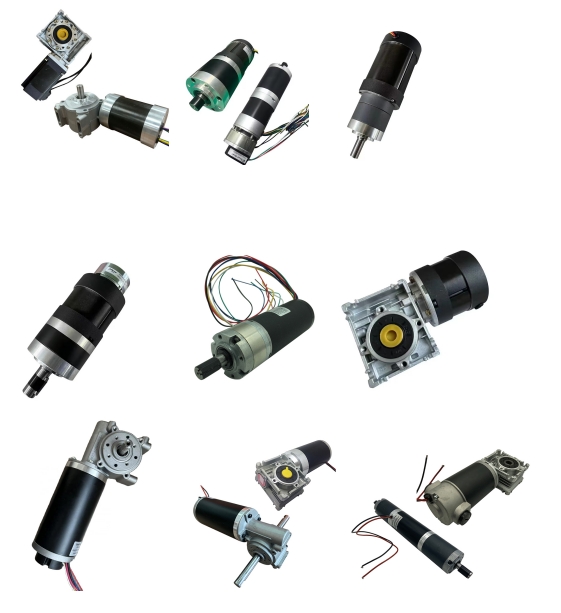

3. Dc Gear Motors
Options :
Integrated With Planetary Gearbox / Worm Gearbox / Encoder / Brake / Controller
Below are typical gearbox
(feartures: helical gear low noise, long life, high torque design)
42mm planetary gearbox
56mm planetary gearbox
|
|
