High Torque Permanent Magnet Brushed Dc Motor
Below are only typical models.
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
OPTIONS:
Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm
Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc
Rated torque : upto 3Nm (calculated without gearbox)
Rated speed: upto 15000rpm
Rated power: upto 1000w
Protection class IP 40 50 54 56 66 67 Option
BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS

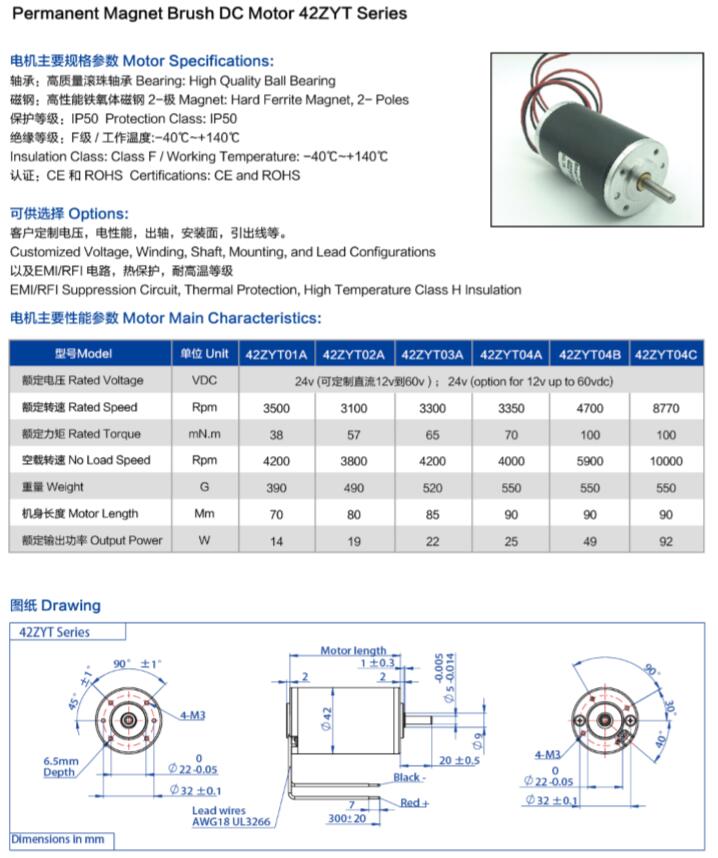

42mm
54mm
63mm

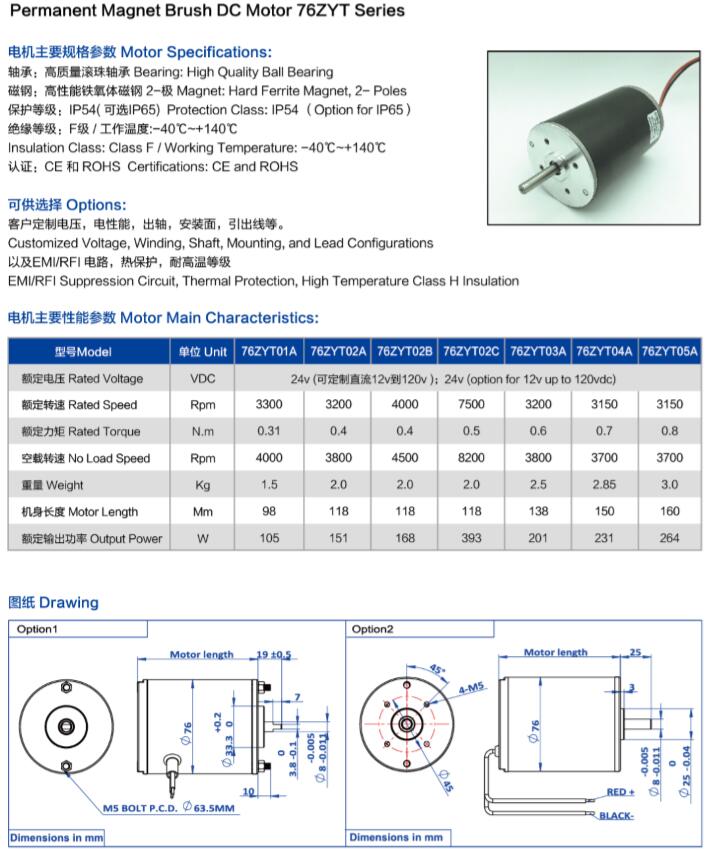

76mm
90mm
Gearbox, encoder, brakes integrated version

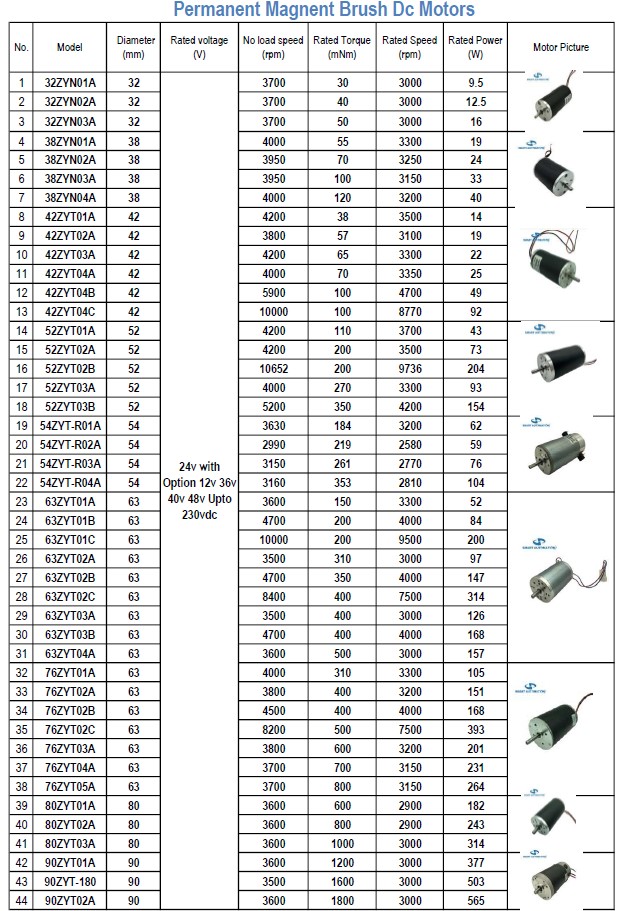

Belows are some typical models
|
|
