| Brand Name : | SMART AUTOMATION |
| Model Number : | 70ZYT Series |
| Certification : | CE |
| Price : | To be negotiated |
| Payment Terms : | D/A, T/T, L/C,D/P |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Delivery Time : | 10-30 days |

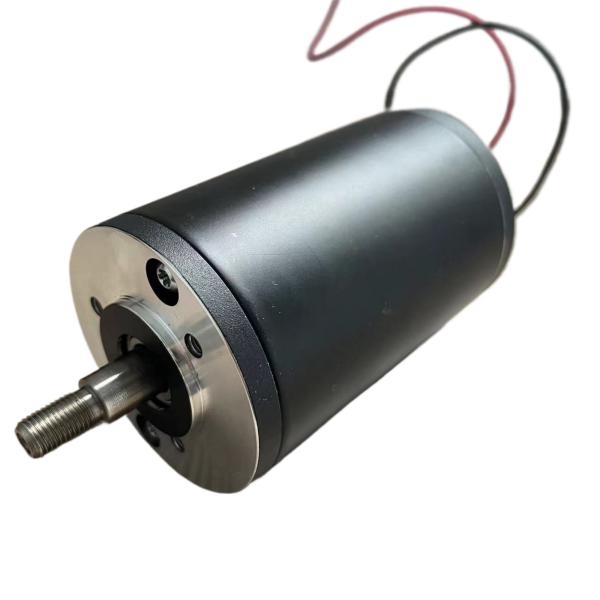

70ZYT Series Brushed Dc Motor
70ZYT Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Option: Customized Voltage Performance Mounting and Shaft
70ZYT Motor Main Technical Specification:
| Model | Unit | 70ZYT01A | 70ZYT02A | 70ZYT03A | 70ZYT04A |
| Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||
| No Load Speed | Rpm | 3600 | 3600 | 3600 | 3600 |
| Rated Torque | N.m | 0.1 | 0.25 | 0.35 | 0.5 |
| Rated Speed | Rpm | 3000 | 3000 | 3000 | 3000 |
| 额定电流 Rated Current | A | 1.8 | 4.6 | 6.4 | 9.2 |
| Output Power | W | 31 | 78.5 | 110 | 157 |
| Weight | Kg | 0.85 | 1.25 | 1.45 | 1.65 |
| Motor Length | mm | 79 | 99 | 109 | 129 |

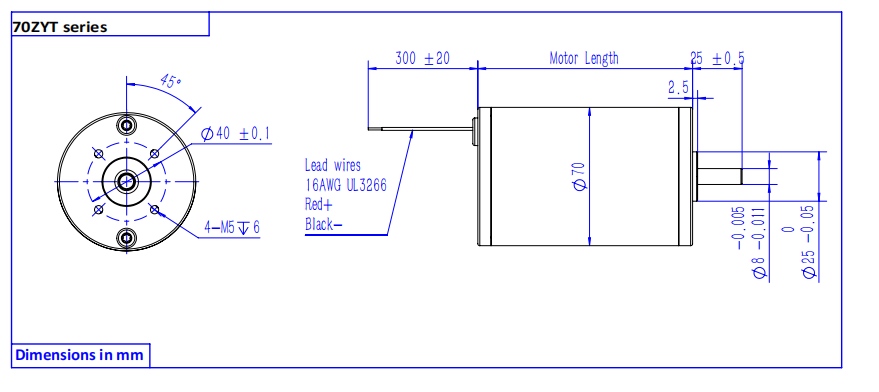

Drawing:
|
|
